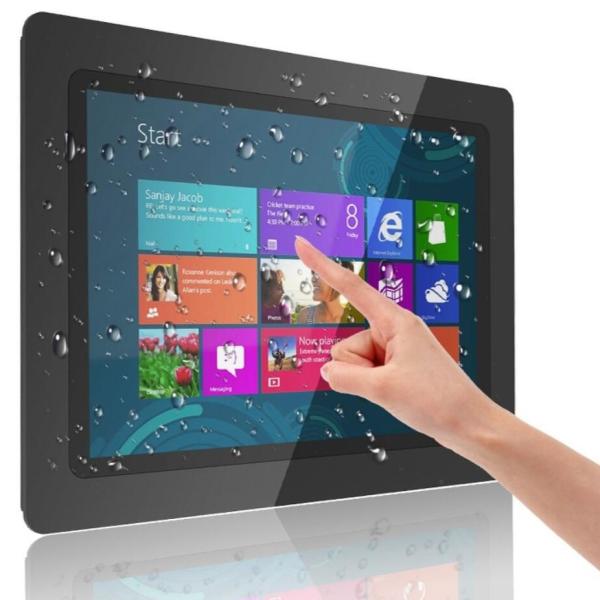

    19 Inch LCD LED Industrial All In One PC Touch Screen Wide Working Temperature

    Ask Lasest Price
    Brand Name : Shine Star/OEM
    Supply Ability : 1000 units per month
    Price : To be negotiated
    Certification : CE-LVD, CE-EMC, FCC, ROHS, ISO9001
    Delivery Time : 15 work days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Model Number : SY190
    • Product Details
    • Company Profile

    19 Inch LCD LED Industrial All In One PC Touch Screen Wide Working Temperature

    Product Description

    19 Inch LCD LED Industrial All In One PC Touch Screen Wide Working Temperature

    Product specifications:

    Display Panel Details
    Display Panel Brand
    LG,Samsung,AUO,Chimei,etc... original brand new and grade A+
    Size
    19 inch
    Customize Frame Color
    Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
    Body Material
    Aluminum alloy frame+tempered glass to protect the LCD panel from external impacts. The front panel meets NEMA/IP65 waterproof and dustproof standards, making it suitable for harsh industrial working environments and most suitable for industrial applications such as factory automation, mechanical manufacturing, CNC equipment, textile equipment, communication networks, and power automation.
    PC Configuration
    CPU
    CPU Rockchip 3566 Quad Core
    Chipset Frequency
    2.0Ghz
    GPU
    Mali-G52-2EE
    Ram and Flash
    4GB DDR3 SDRAM & NAND FLASH: 32GB
    OS
    Android 11.0 / Linux Debian 10/ Ubuntu 20.04 OS as options
    WiFi
    802.11n Wifi Integated
    Display Screen Parameters
    Display Ratio
    4:3
    Contrast Ratio
    1000:1
    Brightness
    300 cd/m2 (upto 3500 cd/m2 high brightness as options)
    Colour
    16.7M
    Resolution
    1280*1024
    Touch Screen
    Touch Screen Type
    Capacitive;Resistive(4-wire/5-wire); SAW/IR as options
    Touch Screen Interface
    Serial (RS232) or USB or COM as options
    Surface Hardness
    6H
    Power
    Standby
    ≤3W
    Working
    ≦15W
    Environmental
    Operating Temperature
    -20 ℃~ 70°C
    Storage Temperature
    -30℃ ~ 80°C
    Operating Humidity
    5%~95% (Non condensation)
    Storage Humidity
    5%~95% (Non condensation)
    Shake: SSD applied
    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
    Shock: SSD applied
    10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
    Water proof
    Front panel IP65

    Features:

    1.Versatile Installation Options: This all-in-one PC allows for flexible installation methods, including embedding it directly into surfaces,
    hanging it on walls, or placing it on desktops, providing users with multiple placement options to suit their specific needs and space constraints.
    2.IP65 Protection Rating: Equipped with an IP65 rating, this industrial monitor ensures protection against dust ingress and low-pressure water jets,
    making it ideal for use in harsh environments or areas prone to dust and moisture, such as factories, warehouses, and outdoor installations.
    3.Robust Aluminum Alloy Housing: The durable aluminum alloy enclosure not only provides a sleek appearance but also contributes to its
    resistance to impacts and corrosion, ensuring long-term reliability and stability even in challenging conditions.
    4.Capacitive Touchscreen Technology: The touchscreen monitor utilizes capacitive technology, which enables smooth and responsive operation
    with high sensitivity and accuracy, allowing for seamless interaction and multitouch capabilities, enhancing user experience and productivity.
    5.Wide Range of Applications: This industrial-grade computer is well-suited for a variety of industries, including manufacturing, automation,
    transportation, and more. Its robust design and advanced features make it perfect for control systems, data acquisition, process monitoring,
    and human-machine interface (HMI) solutions.
