Aluminium 43 Inch Seamless Touch Panel PC Windows Embedded AC 100-240V

Ask Lasest Price
Brand Name :	WXYUAN
Supply Ability :	1350 Piece/Pieces per Month
Price :	negotiable
Model Number :	SY430E-02
Certification :	CE FCC ROHS
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	5-22 days

Add to Cart

Product Details
Company Profile

Aluminium 43 Inch Seamless Touch Panel PC Windows Embedded AC 100-240V

Aluminium 43 Inch Seamless Embedded Wall Mounted Touch Screen Computer With Industrial PC

LCD Screen:	43 Inch (16:9 LED)
Display Area:	941.184×529.416mm
Screen Resolution:	1920x1080 / 3840x2160
Viewing Angle:	178/178
Brightness:	350cd/㎡ (higher brightness is available as option)
Contrast:	3000:1
Colour:	16.7M

Display Panel Details	display panel brand	LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
Display Panel Details		Size	7 inch to 98 inch
Customize Frame Color	Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
body material	Durable aluminum frame & tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
PC configuration	Chipset:	X86 mainboard: Intel Core i3 i5 i7/ Celeron J1900/J4125/J6412, Single board: RK3288 RK3399 RK3588 RK3566 RK3568...... as options
		Chipset Frequency:	Quad core upto 5Ghz
		Chipset integrated	Intel Bay trail SOC etc...... as options
		Ram:	4GB DDR4 SDRAM (16GB max)
		Hard disk:	128GB high speed solid state disk upto 3TB (optional)
		WiFi	350Mbps 802.11b/n/g Wifi Integated, (2.4G & 5Ghz dual WIIF module as option)
PC configuration	Audio	Realtek HD ALC662 HD Line-In/Line-Out/Speaker out with 1W AMP Circuit
		Ethernet ports	Realtek RTL8111EL PCI-E Gigabit Ethernet LAN RJ45 port
		HDMI ports	Default *1 (options)
		COM ports	Default *2 COM (RS232 RS485 RS422 options)
		USB ports	Default 4 USB (2USB2.0; 2*USB3.0) (options)
Operation System:	Win7, Win7 Embedded, Win8, Win10, Ubuntu, VXWORKS, QNX, Linux, Android etc...
Touch Screen	TouchScreen Type	Resistive(4-wire/5-wire); capacitive; SAW/IR as options
		TouchScreen interface	Serial (RS232) or USB or COM as options
		Surface Hardness	Mohs' Number 7; Transmittance >75%
Power Supply	Input Voltage	DC12V or 24V
Power Supply		Output Rating	≦20W
Environmental	Work Temperature	-20 ~ 60°C (-4~140°F)
		Storage Temperature	-30 ~ 80°C (-22 ~ 176°F)
		Relative humidity	5~95% (Non condensation)
		Shake: SSD applied	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
		Shock: SSD applied	10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
		EMC	CE/FCC Class A
		Water-proof	Front panel IP65

Features.

Our industrial panel PC are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.
Our industrial PC provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel PC have 7 inches to 98 inches.

Specialties.

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2. Exceptional quality and highly engineered industrial monitors
3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4. All steel construction designed for harsh and industrial environments
5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
6. Meets NEMA 4/4x/12 and IP65 standards
7. Multiple mounting options (75*100mm VESA mount and clamps mounting)
8. Accuracy in high-use applications
9. Supports Windows 7/10/11/XP, Linux OS, Android, Mac OS, Ubuntu, Debian
10. CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional
12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

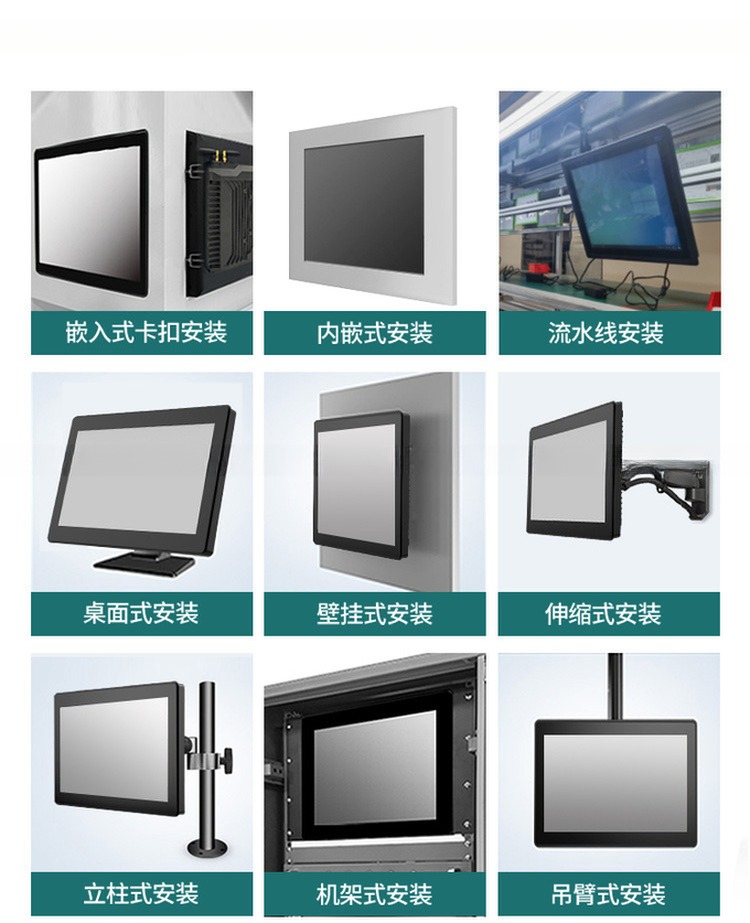

Installation Instructions

Aluminium 43 Inch Seamless Touch Panel PC Windows Embedded AC 100-240V
