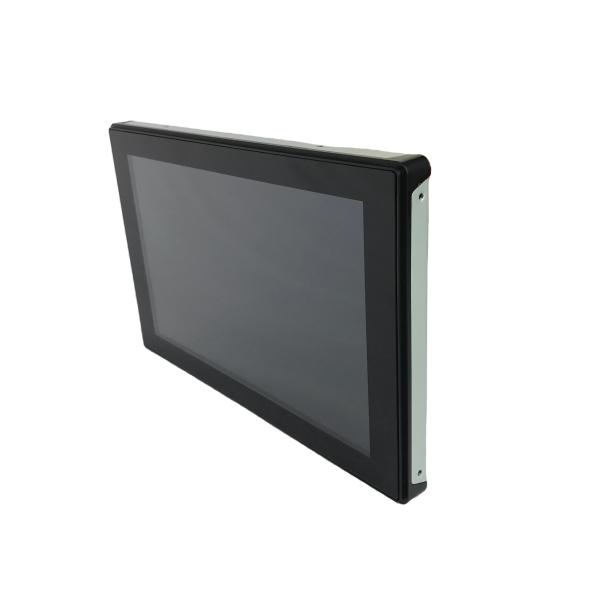

    Embedded 18.5 Inch LED RS232/USB Capacitive Multi Touch Industrial Display Screen

    Ask Lasest Price
    Supply Ability : 1000 units per month
    Price : To be negotiated
    Brand Name : Shine Star/OEM
    Certification : CE-LVD, CE-EMC, FCC, ROHS, ISO9001
    Delivery Time : 15 work days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Model Number : SY185
    • Product Details
    • Company Profile

    Embedded 18.5 Inch LED RS232/USB Capacitive Multi Touch Industrial Display Screen

    Product Description

    Embedded 18.5 Inch LED RS232/USB Capacitive Multi Touch Industrial Display Screen

    Product specifications:

    Display Panel Details
    Display Panel Brand
    LG,Samsung,AUO,Chimei,etc... original brand new + grade A+
    Size
    15 inch
    Installation method
    Embedded installation, with the display screen and cabinet surface on the same horizontal plane, achieves a higher degree of cabinet integration
    Body Material
    Durable sheet metal frame + tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
    LCD
    Display Ratio
    16:9
    Resolution
    1920*1080
    Contrast Ratio
    1000:1
    Colour
    16.7M
    Brightness
    300cd/m2(upto 3500cd/m2 high brightness as options)
    Viewing Angle
    178/178
    General
    Control Button
    Set Contrast ratio and Luminance via OSD at the back panel
    Voltage
    DC 12V, support reverse polarity protection (optional DC 24V)
    Power
    5W
    Signal Input
    VGA ,DVI-D ,HDMI
    Touch Screen
    Type
    Capacitive touch screen and resistive touch screen as options
    Transmittance
    > 81%
    Surface Hardness
    6 H
    Controller interface
    USB/ RS-232C
    Response Time
    < 5ms
    Environmental
    Operating Temperature
    -10℃ ~ 60°C
    Storage Temperature
    -20℃ ~ 70°C
    Relative Humidity
    5%~95% (Non condensation)
    Shake: SSD Applied
    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
    Shock: SSD Applied
    10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
    Water-proof
    Front panel IP65

    This is an ultra-thin industrial touch monitor that support HDMI, VGA and DVI inputs, front panel made of sheet metal and

    toughened glass as surface, support 12V DC power input, optional DC 24V input. touch screen flexibility to choose the COM port,

    USB port to communicate with the host.

    1.Application Range: This monitor is suitable for a wide range of industrial applications, including factory automation, process control, and human-machine
    interfaces (HMIs). It excels in environments where durability and reliability are paramount.
    2.Embedded Installation: The monitor supports embedded installation, allowing it to be seamlessly integrated into control panels, cabinets, or walls. This installation
    method not only saves space but also provides a clean and professional look, making it ideal for space-constrained environments.
    3.IP65 Protection Rating: With an IP65 rating, the monitor is protected against dust and water jets from all directions. This makes it suitable for use in dusty and wet
    environments, ensuring continuous operation without the risk of damage from external contaminants.
    4.SheetMetal Enclosure: The monitor is housed in a durable sheet metal casing, typically made of sheet metal, which provides excellent protection against physical
    impacts and wear over time. This robust construction ensures the monitor remains functional even under harsh conditions.
    5.Capacitive and Resistive Touch Options: The monitor comes with the option of either capacitive or resistive touch technology.
